M12 H

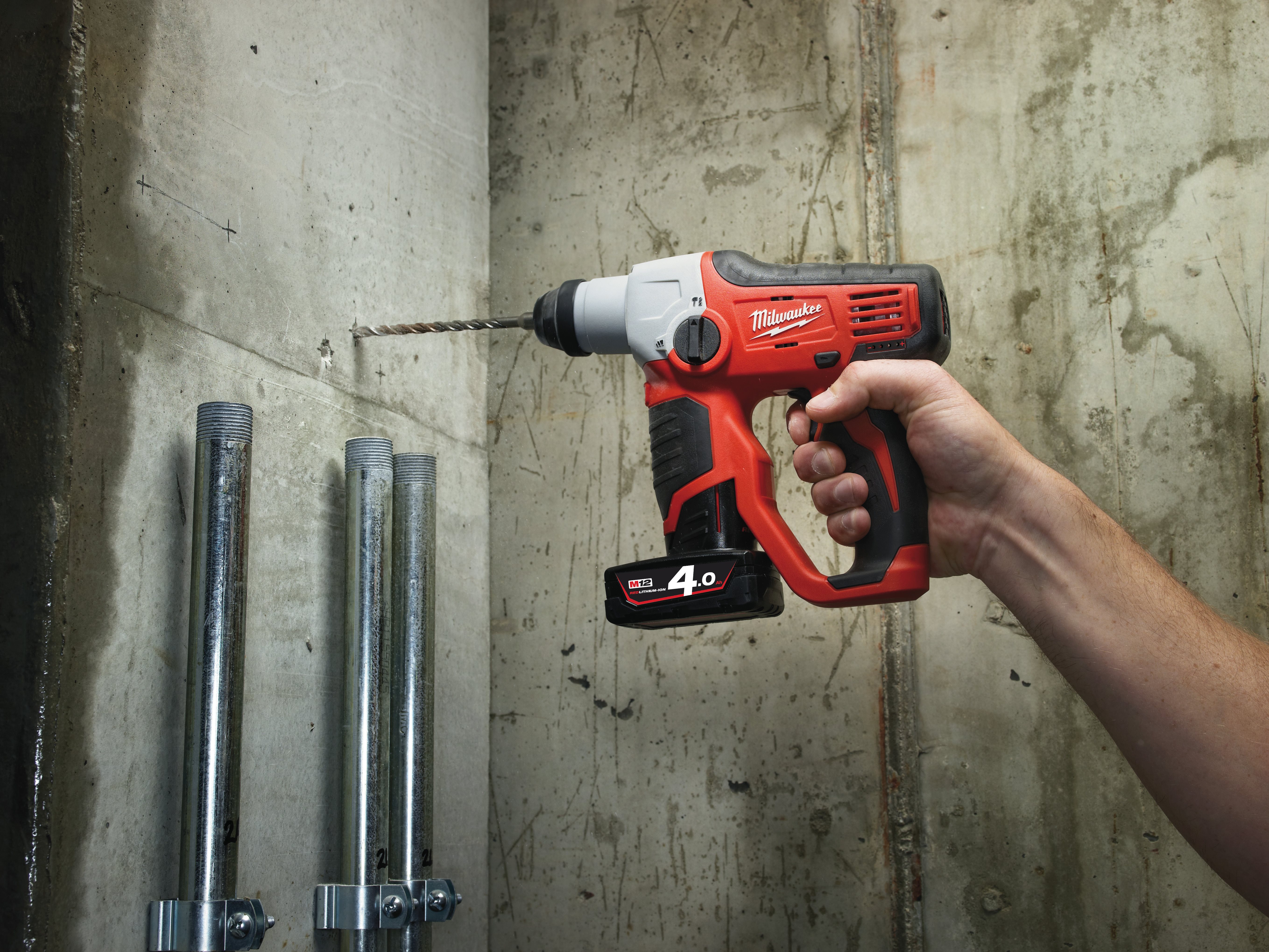

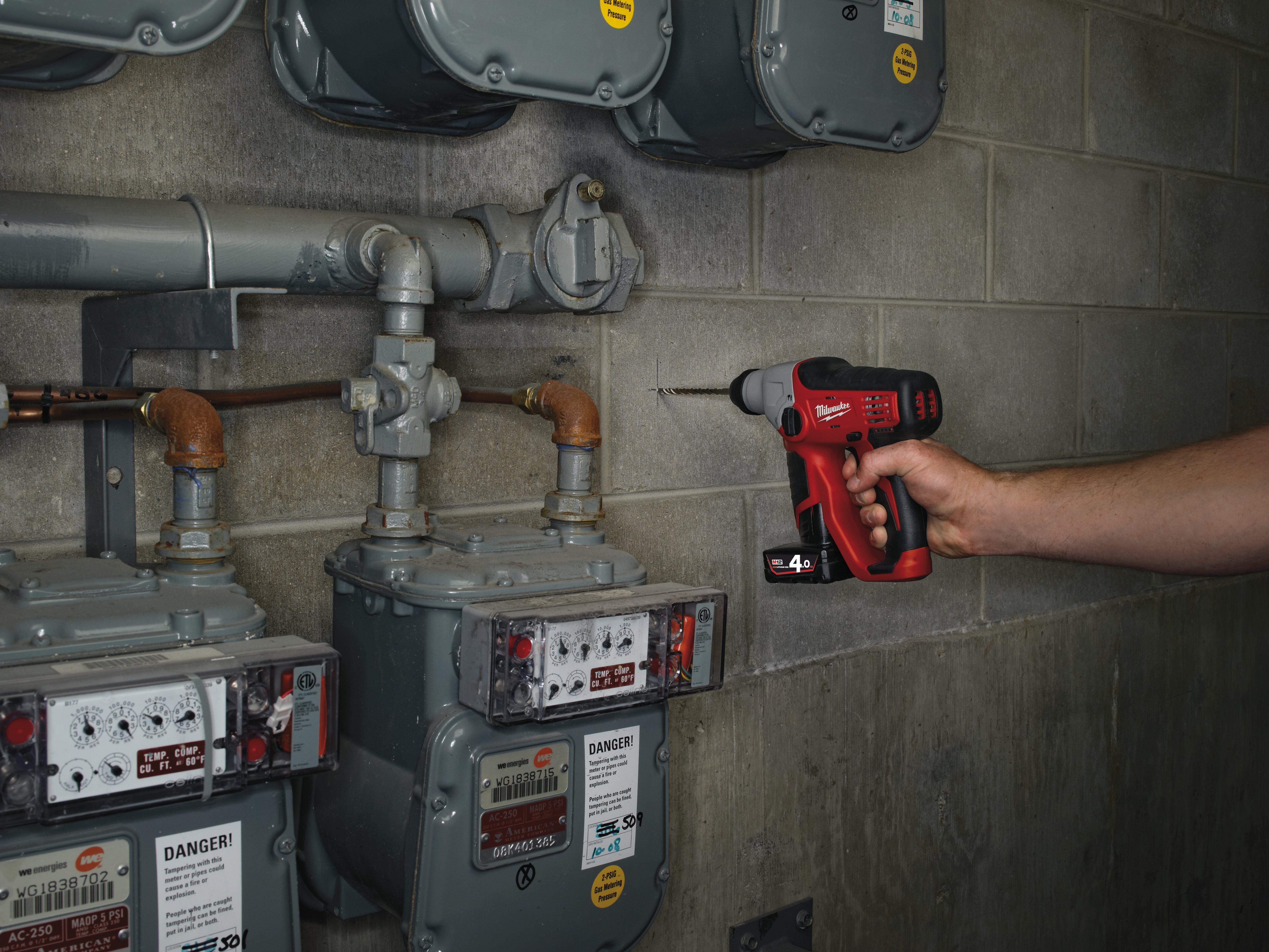

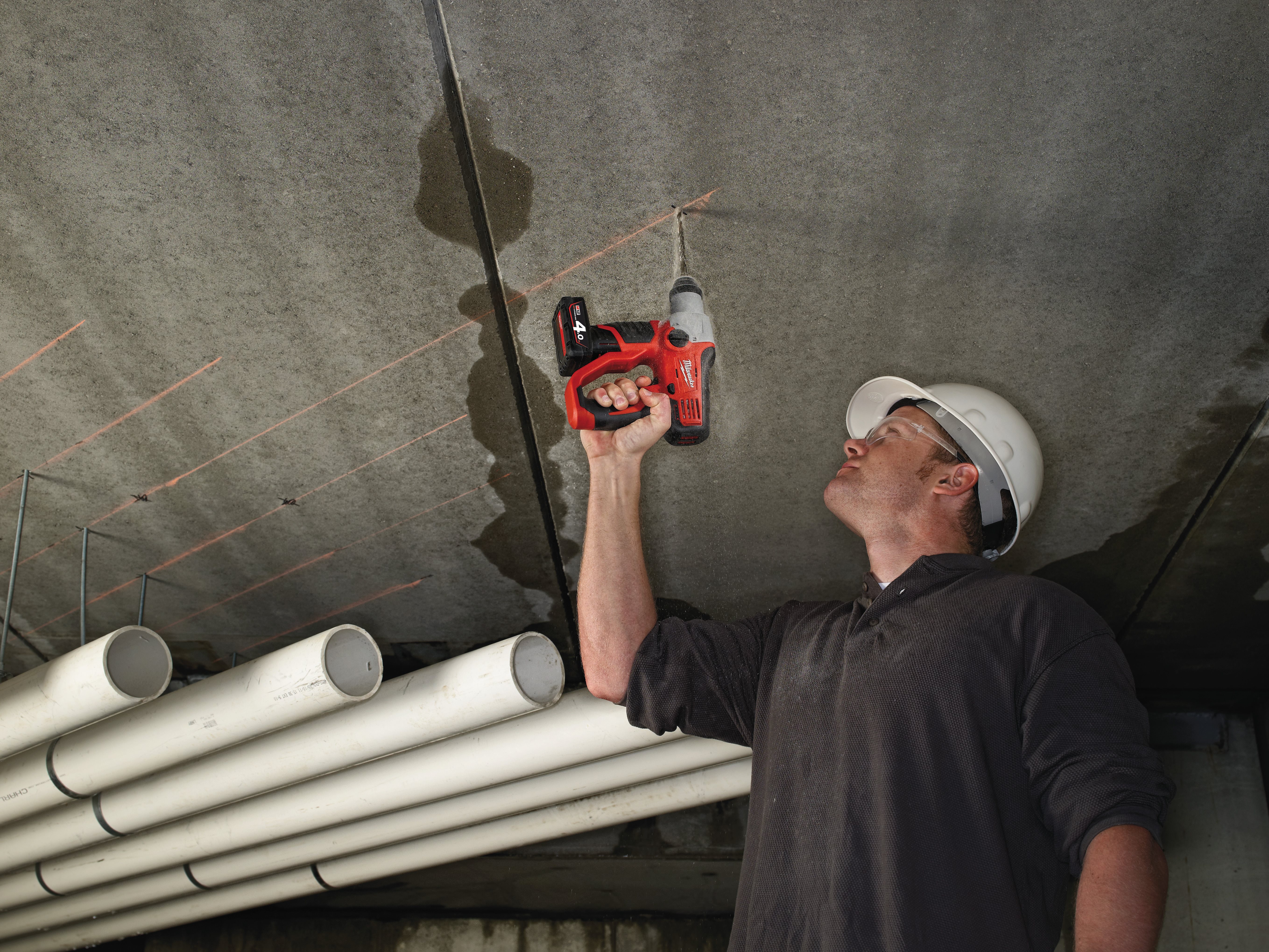

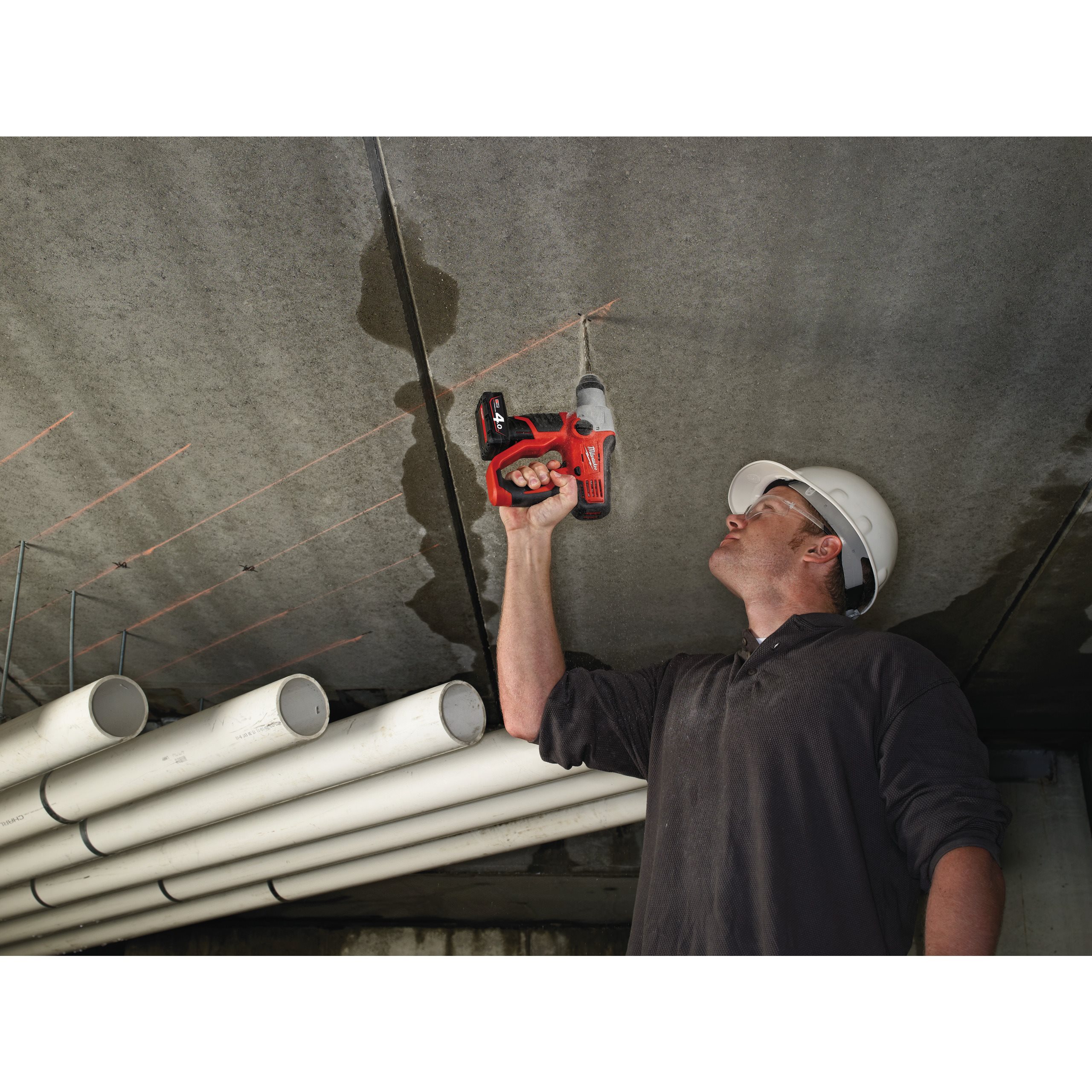

M12™ sub compact SDS-plus hammer



Ergonomically designed, compact and light weight allows for work in tight spaces and reduces fatigue during all day use

REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability

L-shape, 2 mode hammer drill for hammer & rotary drilling for maximum versatility

Low vibration at 6.7 m/s²

Optimised hammer drilling up to 4 - 8 mm (max 13 mm)

Individual battery cell monitoring optimises tool run time and ensures long term pack durability

On board fuel gauge and LED light - added user convenience and illumination in low lit working conditions

REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

Flexible battery system: works with all MILWAUKEE® M12™ batteries

Select Model Variant

M12 H-402C

  • M12 H-402C
  • M12 H-202C
  • M12 H-0

Where to buy

Find a store

Range Spec

Product Specifications M12 H-402C
M12 H-402C
M12 H-202C
M12 H-202C
M12 H-0
M12 H-0
Article Number 4933441164, 493344316149334313404933431355
Battery pack capacity (Ah) 4.02.0No batteries supplied
Battery type Li-ionLi-ionLi-ion
Blow energy (EPTA)(J)
Full load hammer action (bpm) 0 - 53500 - 53500 - 5350
Kit included 2 x M12 B4 Battery packs, C12 C Charger, Kitbox2 x M12 B2 Battery packs, C12 C Charger, Kitbox
Max. drilling concrete (mm) 131313
Max. drilling steel (mm) 888
Max. drilling wood (mm) 101010
Max. drilling wood/ steel/ concrete (mm) 10/ 8/ 1310/ 8/ 1310/ 8/ 13
No load speed (rpm) 0 - 8000 - 8000 - 800
No. of batteries supplied 220
Optimised drilling capacity in concrete (mm) ⌀ 5.5 - 10⌀ 5.5 - 10⌀ 5.5 - 10
Supplied in KitboxKitboxNo kitbox or bag supplied
Tool reception SDS-PlusSDS-PlusSDS-Plus
Vibration drilling (m/s²)
Voltage (V) 121212
Weight with battery pack (EPTA) (kg) 1.8 (M12 B4)1.6 (M12 B2)1.8 (M12 B4)
Sound power level (Lwa)(dB(A)) 92.592.592.5
Sound power level uncertainty (dB(A)) 333
Sound pressure level (Lpa)(dB(A)) 81.581.581.5
Sound pressure level uncertainty (dB(A)) 333
Vibration drilling into concrete [m|s²]
Vibration drilling into concrete uncertainty [m|s²]
