M12 FUEL™ sub compact hackzall™



Brushless POWERSTATE™ motor for up to 6x longer motor life and up to 70% faster cutting in certain applications

REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load

REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

Individual battery cell monitoring optimises tool run time and ensures long term pack durability

Patented FIXTEC™ clamp for fast and easy keyless blade change

Counter balance mechanism lowers vibration to 6.5 m/s² allowing the operator to work safely for longer periods of time reducing fatigue

Sealed gearbox prevents water and debris entering the housing

LED light illuminates the cutline in low light conditions

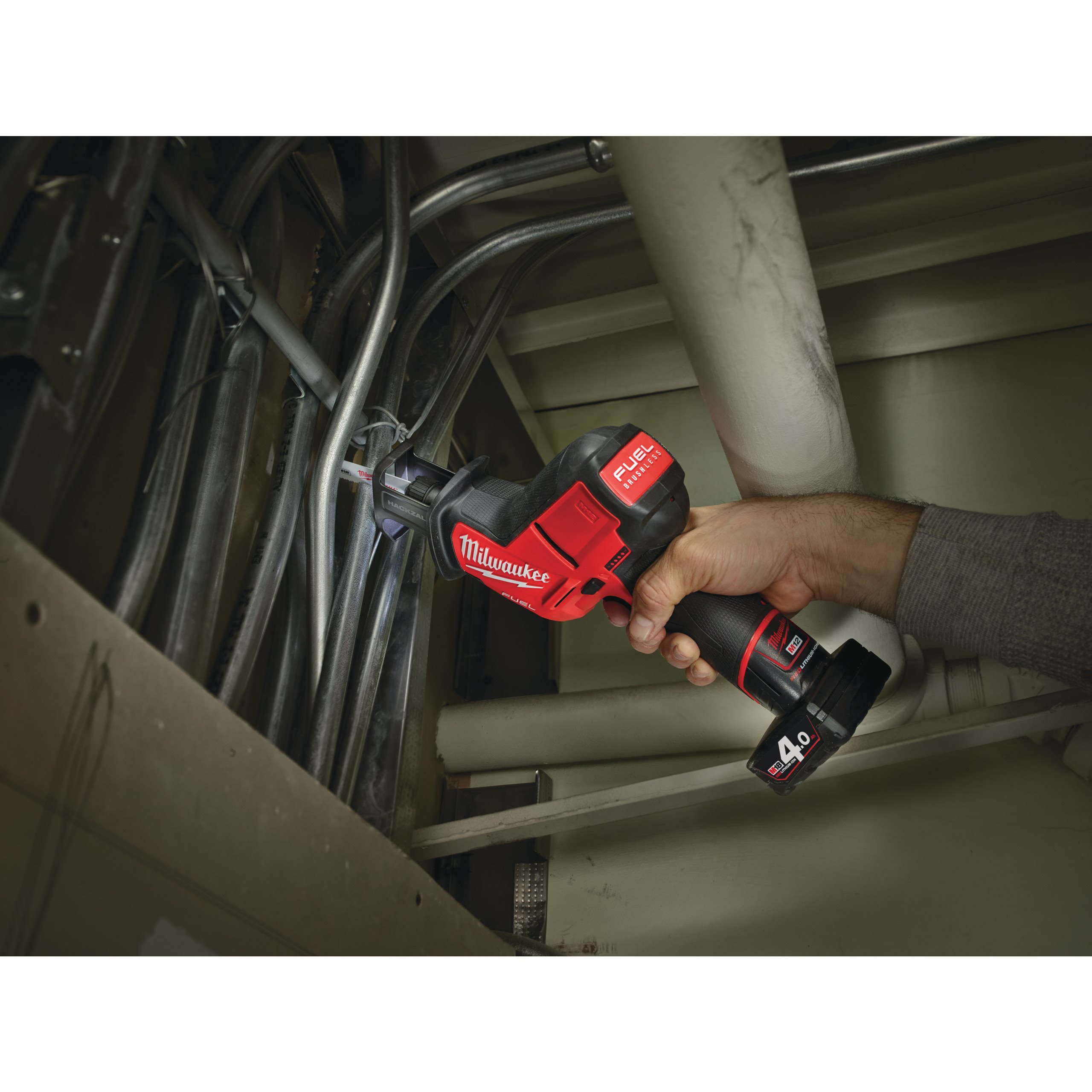

Compact and light weight allows users to complete applications in restricted areas

Flexible battery system: works with all MILWAUKEE® M12™ batteries

Select Model Variant

M12 CHZ-602X

  • M12 CHZ-602X
  • M12 CHZ-402C
  • M12 CHZ-202X
  • M12 CHZ-0

Where to buy

Find a store

Range Spec

Product Specifications M12 CHZ-602X
M12 CHZ-602X
M12 CHZ-402C
M12 CHZ-402C
M12 CHZ-202X
M12 CHZ-202X
M12 CHZ-0
M12 CHZ-0
Article Number 4933451511, 4933451908493344695049334477384933446960
Battery pack capacity (Ah) batteries supplied
Battery type Li-ionLi-ionLi-ionLi-ion
Kit included 2 x M12 B6 Battery packs, C12 C Charger, HD Box2 x M12 B4 Battery packs, C12 C Charger, Kitbox2 x M12 B2 Battery packs, C12 C Charger, HD Box
No load stroke rate (spm) 0 - 30000 - 30000 - 30000 - 3000
No. of batteries supplied 2220
Standard equipment 1 x Sawzall™ blade1 x Sawzall™ blade1 x Sawzall™ blade1 x Sawzall™ blade
Stroke length (mm) 15.915.915.915.9
Supplied in HD BoxKitboxHD BoxNo kitbox or bag supplied
Vibration cutting (m/s²)
Vibration cutting boards (m/s²)
Vibration cutting boards uncertainty (m/s²)
Vibration cutting uncertainty (m/s²)
Vibration cutting wooden beam (m/s²) 6.526.526.526.52
Vibration cutting wooden beam uncertainty (m/s²)
Voltage (V) 12121212
Weight with battery pack (EPTA) (kg) 1.6 (M12 B6)1.6 (M12 B4)1.6 (M12 B2)1.6 (M12 B4)
Sound power level (Lwa)(dB(A)) 93.993.993.993.9
Sound power level uncertainty (dB(A)) 3333
Sound pressure level (Lpa)(dB(A)) 82.982.982.982.9
Sound pressure level uncertainty (dB(A)) 3333
